Pipeline components

The EHT-HOPS pipeline consists of five stages of iterative fringe-fitting and post-processing calibration stages. A detailed description of the capabilities of the pipeline can be found in Blackburn et al. (2019).

Stages in the pipeline

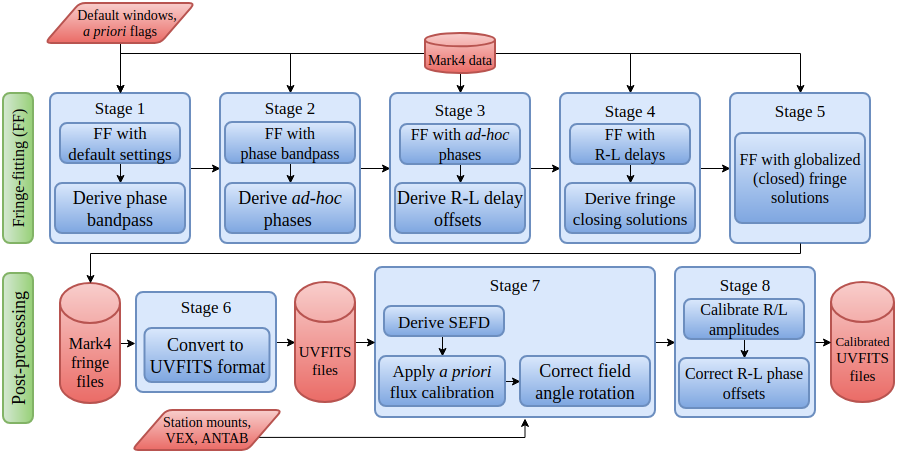

Control flow in the EHT-HOPS pipeline

A typical EHT-HOPS pipeline workflow (Natarajan et al., in prep).

The HOPS fourfit program performs fringe-fitting. It takes as input a control file consisting of commands that control data selection and the calibration parameters to be used. Calibration scripts in the eat library are also used to generate control files which are passed to fourfit in the following stage. The control files can also include commands added by the user manually after inspecting the data and the calibration solutions.

Fringe-fitting is performed in stages 0 to 5, with each stage building on the solutions derived in the previous stage. All stages consist of the following common steps:

  • 0.launch – sets up the environment variables and launches the pipeline.

  • 1.version – logs the versions of all python dependencies.

  • 2.link – links the archival data to the working directory.

  • 3.fourfit – performs fringe-fitting using the control files generated in the previous stage.

  • 4.alists – creates the summary alist files.

  • 5.check – generates summary marimo notebooks with diagnostic plots using the output alist files and the fringe-fitting solutions.

  • 6.summary – collects all the errors and warnings from the previous steps in a single logfile.

  • 9.next – sets up the environment for the next stage (copying scripts and control files as necessary).

The stage-specific steps (usually step 7) perform additional operations and write out control files to be input to the following stages.

  • 7.pcal in stage 1.+flags+wins – applies flags and search windows and derives phase bandpass solutions.

  • 7.adhoc in stage 2.+pcal – applies bandpass phase calibration solutions and derives adhoc phase solutions.

  • 7.delays in stage 3.+adhoc – applies adhoc phase solutions and derives R/L delay solutions.

  • 7.close in stage 4.+delays – applies delay calibration solutions and globalizes fringe solutions.

Stage 5.+close performs one final round of fringe-fitting in which all the solutions are applied.

The post-processing stages are not part of the main pipeline workflow, and are run only as needed:

  • Stage 6.uvfits generates UVFITS files from the Mk4 fringe files. Starting from this stage, the uvfits files are used as inputs to the subsequent stages.

  • Stage 7.apriori derives SEFDs using metadata from antab/, vex/, and array.txt files) and performs amplitude calibration and field angle rotation correction.

  • Stage 8.+polcal performs R/L gain ratio calibration.

Todo

Automatic simultaneous multi-band data processing is not supported by the pipeline yet. Each band is processed independently.

Data organization

The inputs and outputs of the HOPS fourfit program conform to the specifications of the Mark 4 (mk4) data format.

The command-line arguments to the pipeline described below are designed around minimal assumptions about how the input data are organized. These assumptions are necessary since, unlike a CASA Measurement Set, Mark4 data are distributed among thousands of data files in a custom directory structure. All input Mark 4 files are expected under this directory structure:

SRCDIR/
└── CORRDAT/
    └── <intermediate subdirectories (multiple levels)>/
        └── <expt_no>/
                └── <scan_no>/
                    └── <input mk4 files>

where

SRCDIR

The top-level source directory.

CORRDAT

A colon-separated prioritized list of data directories containing the data. Directories listed earlier take higher precedence.

<intermediate subdirectories (multiple levels)>

Zero or more levels of subdirectories.

<expt_no>

Directory names corresponding to the HOPS experiment number.

<scan_no>

Directory names corresponding to the scan number. These directories contain all input mk4 files corresponding to a single scan.

Refer to the Launching the pipeline section for more information on how the data organization determines the options passed to the 0.launch script at each stage.

Metadata organization

The metadata directory (by default, found under ehthops/meta) is organized by campaign and observing frequency and contains:

  • HOPS control files (cf*) used for fringe fitting.

  • vex/, antab/, and array.txt files used only for post-processing calibration.

Note

The antab/ files are not released with the pipeline by default due to their large size. Users must ensure that the antab/*.AN files are created from the official ANTAB files found under antab/processed directory in the metadata package released by the EHTC.

The metadata directory (by default, found under ehthops/meta) must be organized as follows:

<campaign>/
└── <frequency-in-GHz>GHz/
    ├── cf/
    │   └── cf[0-9]_b[1234]_*      # Stage- and band-specific control files
    ├── antab/
    │   └── <track>_<band>_proc.AN
    ├── vex/
    │   └── <track>.vex
    └── array.txt

Refer to the Launching the pipeline section for more information on how to set METADIR environment variable at each stage in the 0.launch script.
